EZ M WALL-MOUNT

The EZ M Wall-Mount is an architectural round cylinder LED fixture with a 4 inch aperture and 12 inch height, designed for stylish and elegant open ceiling applications. Made from machined aluminum, it offers durability and sleek design with customizable accessories like Snoot, Pin-Hole, Glowing Ring, and Hex Louver. It provides direct and indirect lighting with multiple beam angles and finishes in black, white, silver, or custom colors.

Downloads ↓
Finish
EZ M WALL-MOUNT finish preview
Popular Finishes
EZ M WALL-MOUNT

Key Specifications

Electrical

Input voltage120-277V
Dimming0-10V, ELV, TRIAC

Optical

Lumen Range1710 - 4500 Lumens
CRI90
CCT2700K, 3000K, 3500K, 4000K
Distribution15 degrees, 30 degrees, 40 degrees, 55 degrees

Physical

Aperture4IN
Standard Sizes5IN
MountingWall

Certifications

Listings5 Years Warranty, RoHS, UL
Education
Application Space

Education

Resources

Spec Sheet EZ M WALL MOUNT View · Download
Spec Sheet EZ M WALL MOUNT FR View · Download

Install Instruction EZ M Wall Mount View · Download

Revit Files View · Download

Eleganza Family Poster View · Download

Accessories

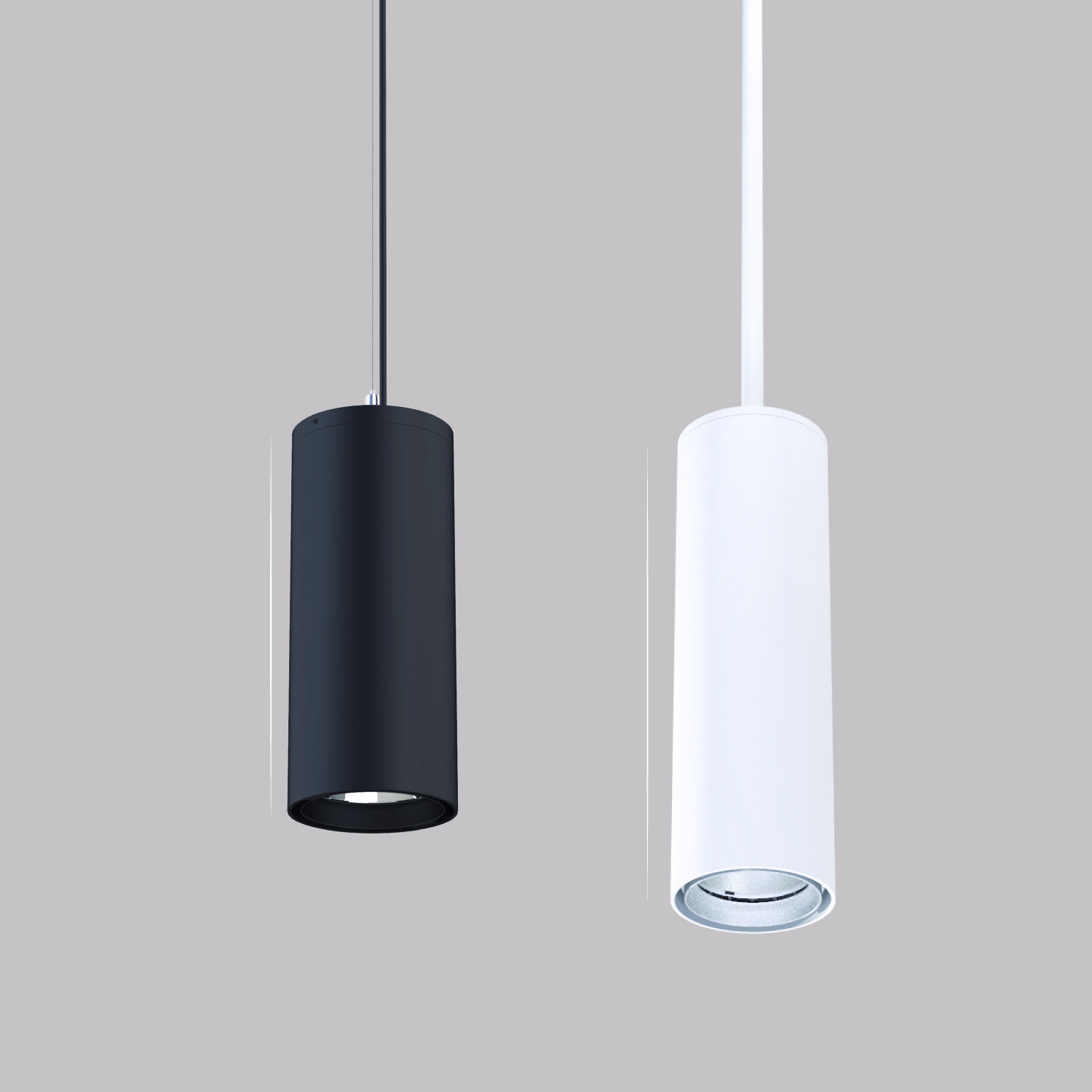

Performance Options

Performance Options

Available in Slim, Slim HO, Standard, and Max formats, providing output levels suited to different applications and ceiling heights.

Scroll to Explore↓

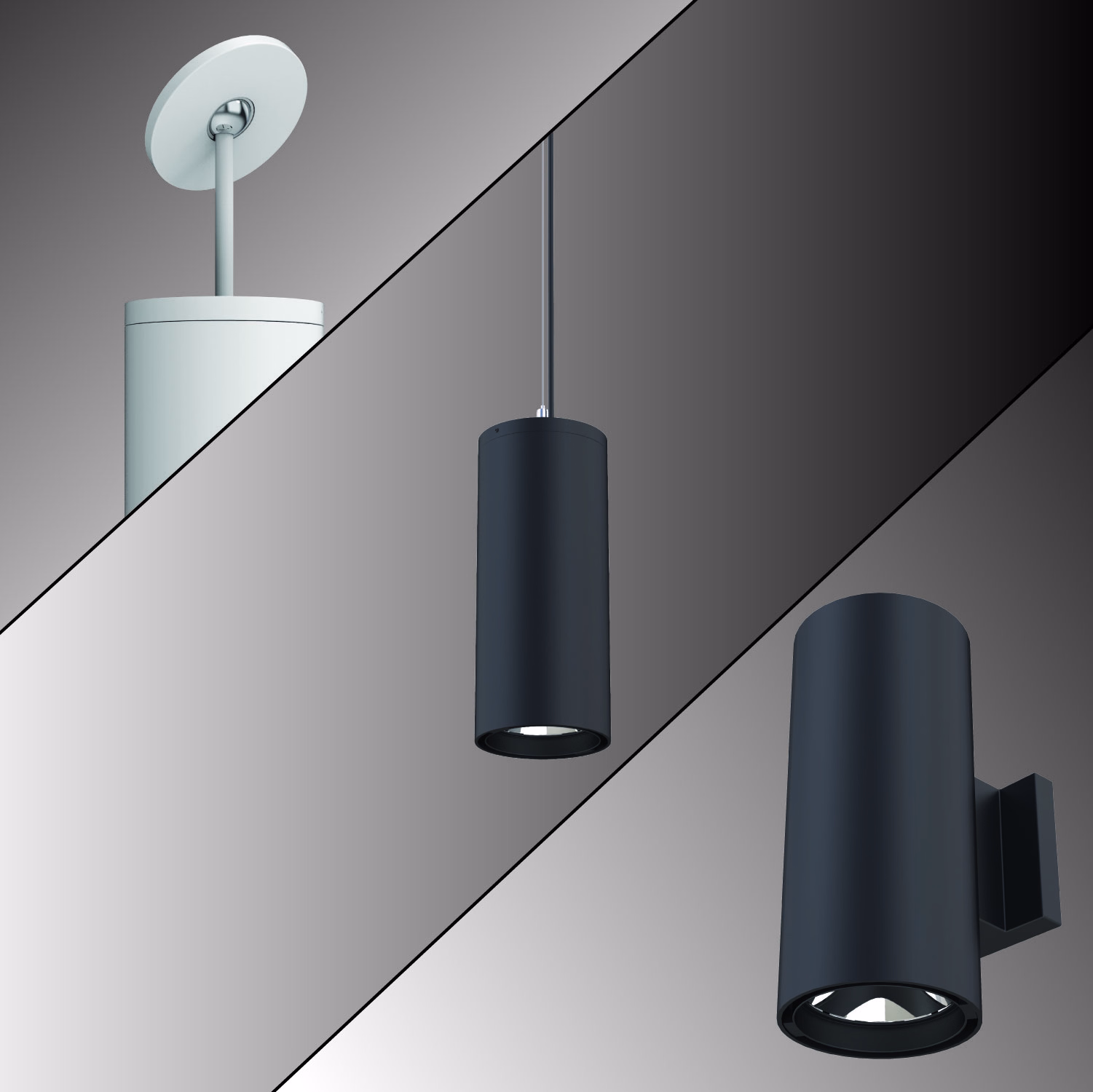

Versatile Mounting

Versatile Mounting

Offered in wall, surface, stem, and pendant configurations for seamless integration into diverse environments.

Scroll to Explore↓

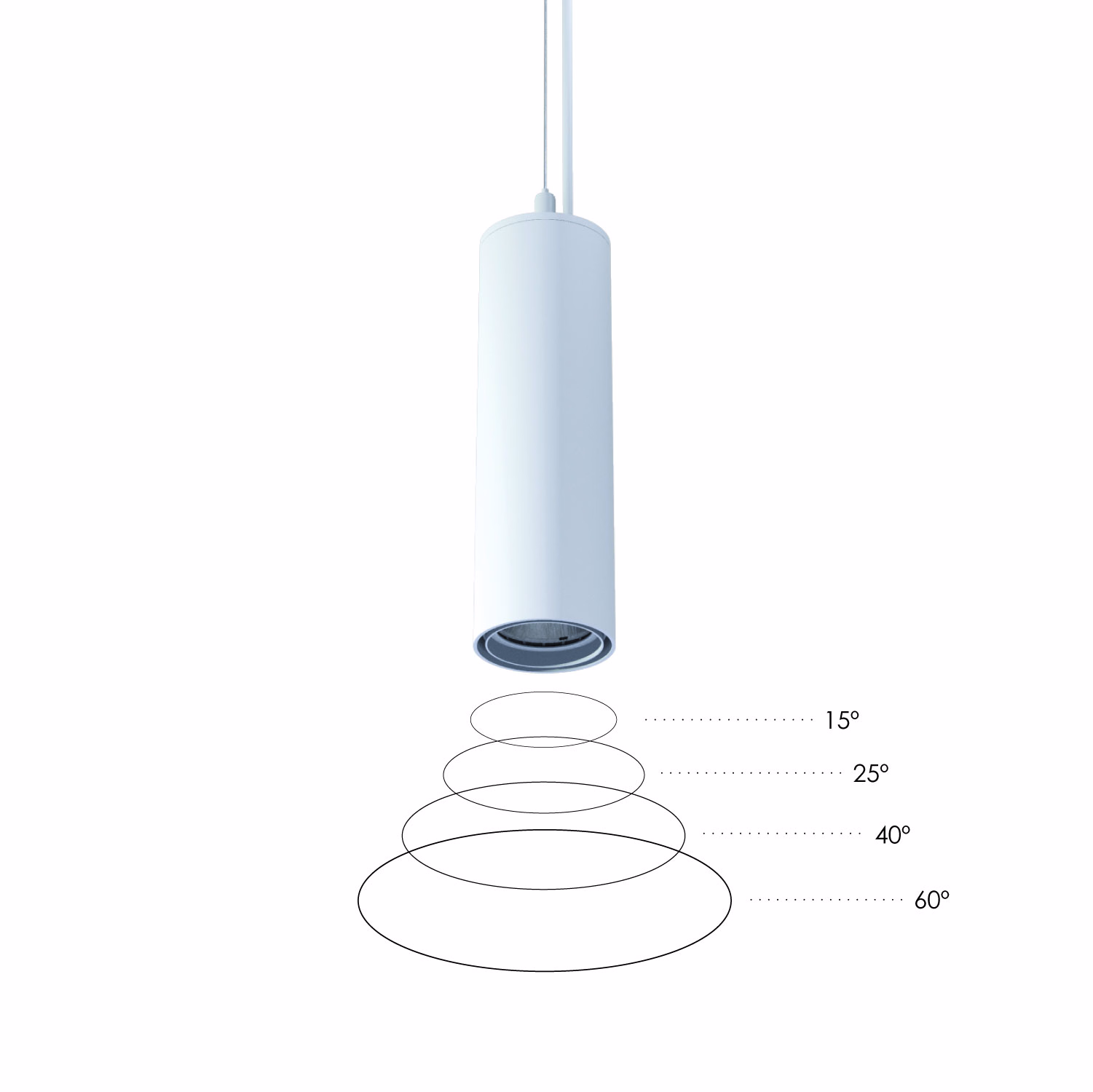

Precision Optics

Precision Optics

Choose from spot, narrow, flood, and wide beam distributions to achieve the desired lighting effect.

Scroll to Explore↓
