Eleganza Slim
OPERATIONS & ELECTRICAL
Input voltage : 120-277Vac
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : TRIAC & 0-10V dimming
Lumens per Watt : 80-85 LPW at 90CRI

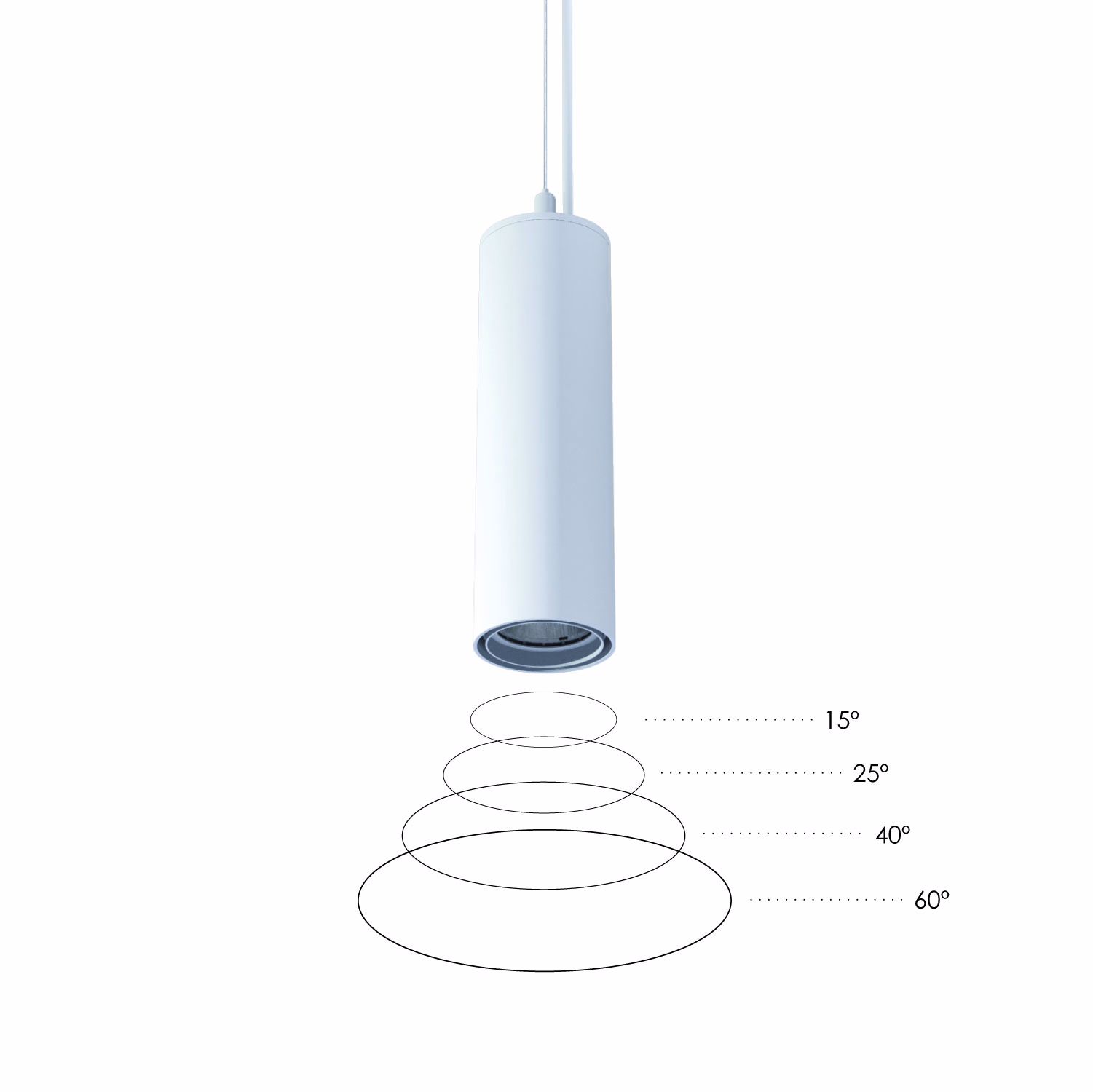

Distribution : 15˚, 24˚, 40˚, 60˚
DESCRIPTION

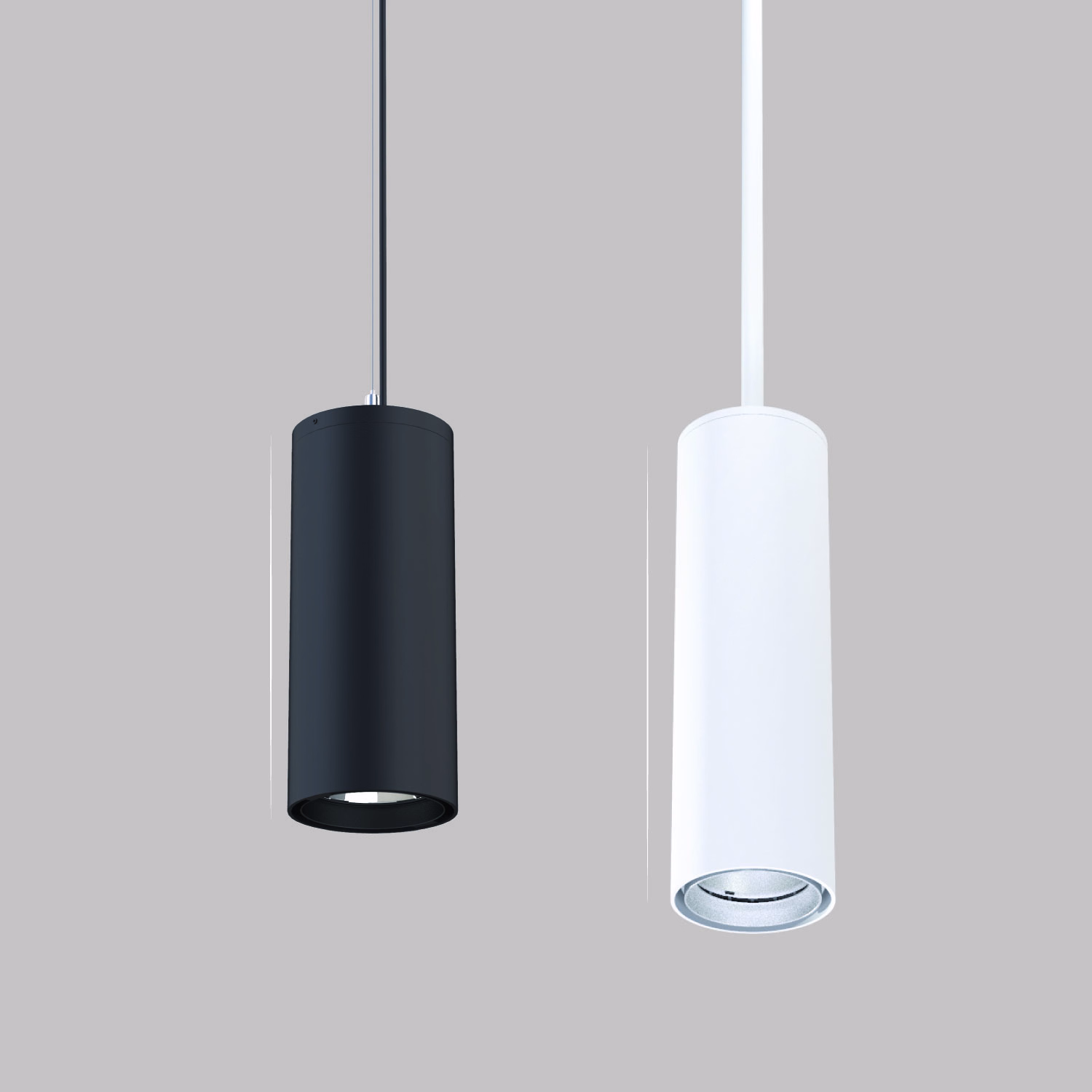

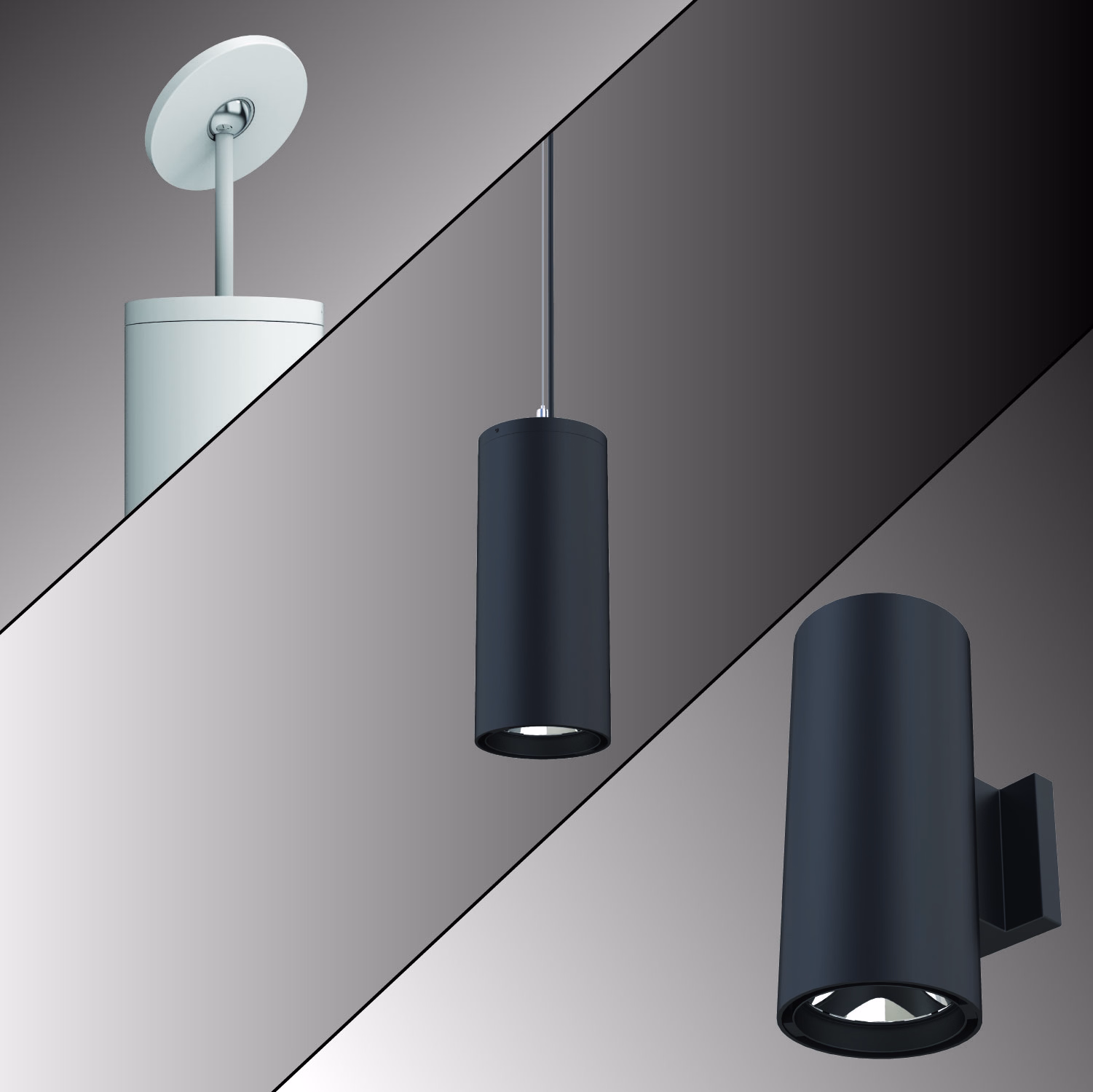

The ELEGANZA SLIM Cylinder series is a continuation of the ELEGANZA cylinder family. It is a beautiful and elegant solution for open ceilings, and it has a distinctive design featuring machined aluminum body, attention to details including the installation process. The modularity of ELEGANZA enables stem mount, surface mount, cable mount, and pendant mount application. Finally, this product is a complete aluminum die cast offering an unparalleled sense of finesse, robustness and quality.
ORDERING CODE
| FIXTURE FAMILY | HEIGHT | MOUNTING METHOD | POWER | CCT | BEAM ANGLE | FINISH* |
|---|---|---|---|---|---|---|
|
AE-TL-EZS ERALUX Eleganza Slim indoor cylindrical pendant fixture |
-10 10.91” fixture height |
-SF Surface mounted fixture mounting method |
-15 15 watts: 1200 lumens at 90 CRI 3000K |
-P30 3000K CCT 90 CRI |
SP 15° beam angle |
-WH White powder coat finish |
|
-P35 3500K CCT 90 CRI |
NF 24° beam angle |
-BK Black powder coat finish |
||||
|
-P40 4000K CCT 90 CRI |
FL 40° beam angle |
-SV Silver powder coat finish |
||||
|
WF 60° beam angle |
-RALXXXX Customed finish |
| FIXTURE FAMILY | HEIGHT | MOUNTING METHOD | CABLE LENGTH | POWER | CCT | BEAM ANGLE | FINISH* |
|---|---|---|---|---|---|---|---|
|
AE-TL-EZS ERALUX Eleganza Slim indoor cylindrical pendant fixture |
-10 10.91” fixture height |
-PC Cable mount fixture mounting method |
-03 3’ cable |
-15 15 watts: 1200 lumens at 90 CRI 3000K |
-P30 3000K CCT 90 CRI |
SP 15° beam angle |
-WH White powder coat finish |
|
-06 6’ cable |
-P35 3500K CCT 90 CRI |
NF 24° beam angle |
-BK Black powder coat finish |
||||
|
-09 9’ cable |
-P40 4000K CCT 90 CRI |
FL 40° beam angle |
-SV Silver powder coat finish |
||||
|
-12 12’ cable |
WF 60° beam angle |
-RALXXXX Customed finish |
| FIXTURE FAMILY | HEIGHT | MOUNTING METHOD | STEM LENGTH | POWER | CCT | BEAM ANGLE | FINISH* |
|---|---|---|---|---|---|---|---|
|
AE-TL-EZS ERALUX Eleganza Slim indoor cylindrical pendant fixture |
-10 10.91” fixture height |
-SM Stem mount fixture mounting method |
-01 1’ stem |
-15 15 watts: 1200 lumens at 90 CRI 3000K |
-P30 3000K CCT 90 CRI |
SP 15° beam angle |
-WH White powder coat finish |
|
-02 2’ stem |
-P35 3500K CCT 90 CRI |
NF 24° beam angle |
-BK Black powder coat finish |
||||
|
-03 3’ stem |
-P40 4000K CCT 90 CRI |
FL 40° beam angle |
-SV Silver powder coat finish |
||||
|
-04 4’ stem |
WF 60° beam angle |
-RALXXXX Customed finish |
