GRACE

The GRACE series is a recessed high-output commercial downlight available in 4", 5", and 6" round sizes. It features durable aluminum housing with easy installation via spring and roto-lock mechanisms, making it suitable for new construction and retrofit projects. The fixture offers multiple lumen outputs, CCT options, reflector finishes, and beam angles of 24°, 38°, and 60°, ideal for large high-ceiling spaces in applications like art galleries, retail stores, and hotel lobbies.

Downloads ↓
Finish
GRACE finish preview
Popular Finishes
GRACE

Key Specifications

Electrical

Input voltage120-277V
Dimming0-10V, Dim to warm, TRIAC

Optical

Lumen Range1694 - 4056 Lumens
CRI90
CCT2700K, 3000K, 3500K, 4000K, 5000K
Distribution24 degrees, 38 degrees, 60 degrees

Physical

Aperture4IN, 5IN, 6IN
Standard Sizes4IN, 5IN, 6IN
MountingRecessed Gypsum, Recessed T-grid

Certifications

Listings5 Years Warranty, IC Rated, IP54, RoHS, cETL
Hospitality
Application Space

Hospitality

Resources

Spec Sheet GRACE View · Download
Spec Sheet GRACE FR View · Download

Install Instruction Grace View · Download

GRACE IES FILES View · Download
REVIT Files View · Download

Grace Poster View · Download

Accessories

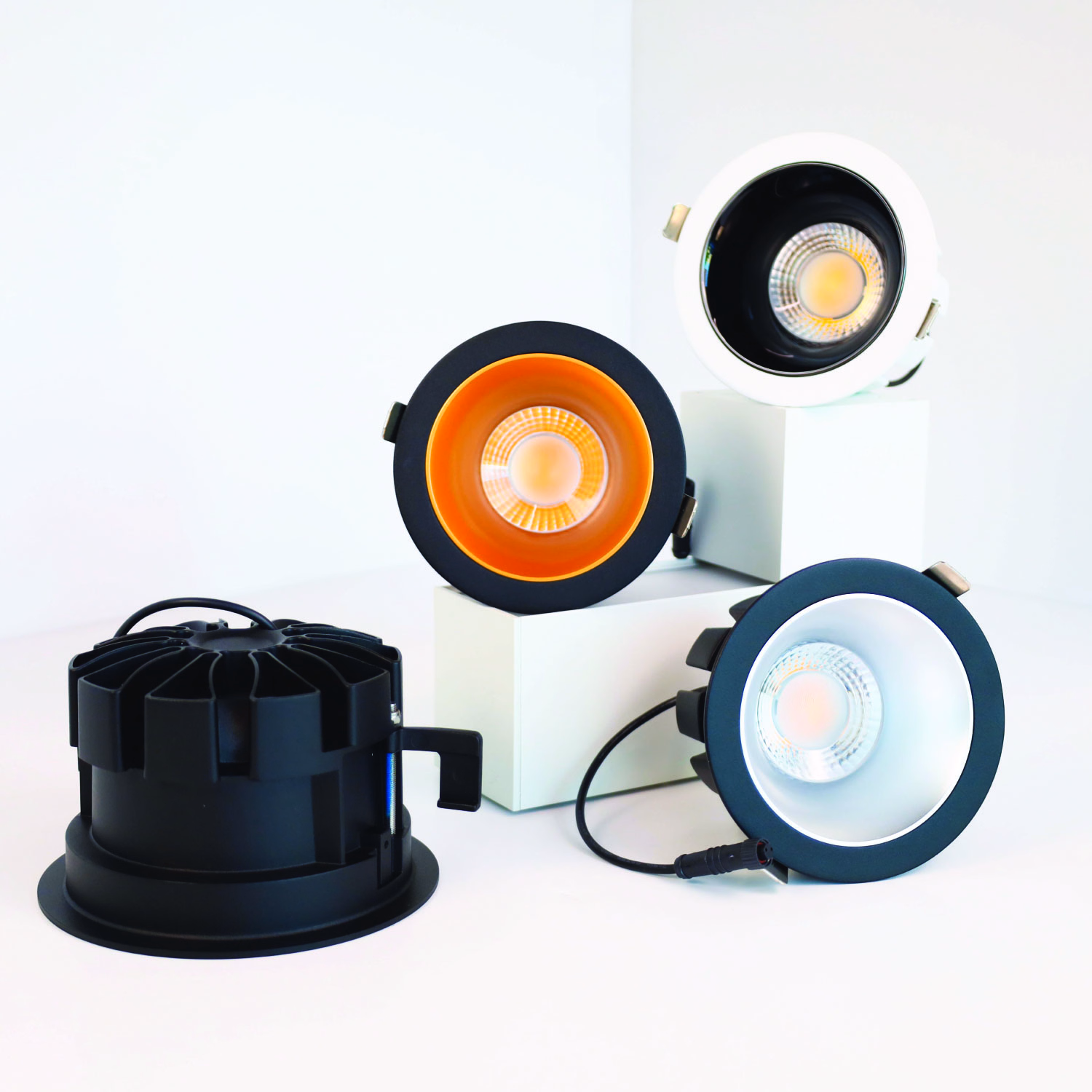

Versatile

Versatile

Available in 4", 5", and 6" apertures, with multiple output options and a wide selection of reflector finishes.

Scroll to Explore↓

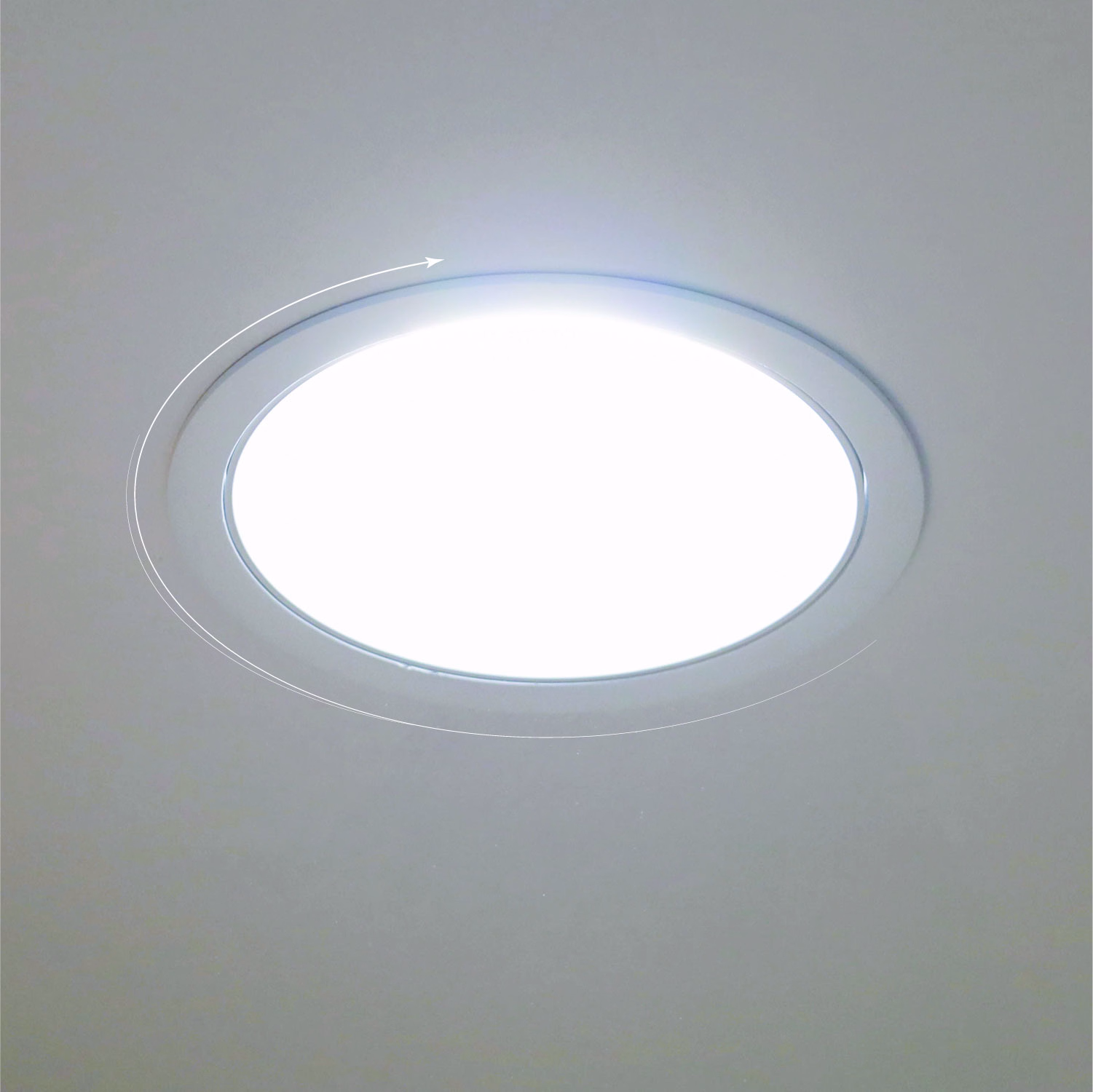

Performance & Comfort

Performance & Comfort

Delivering up to 45W and 5,000 lumens, with low-glare optics and multiple beam angles for powerful yet comfortable illumination.

Scroll to Explore↓

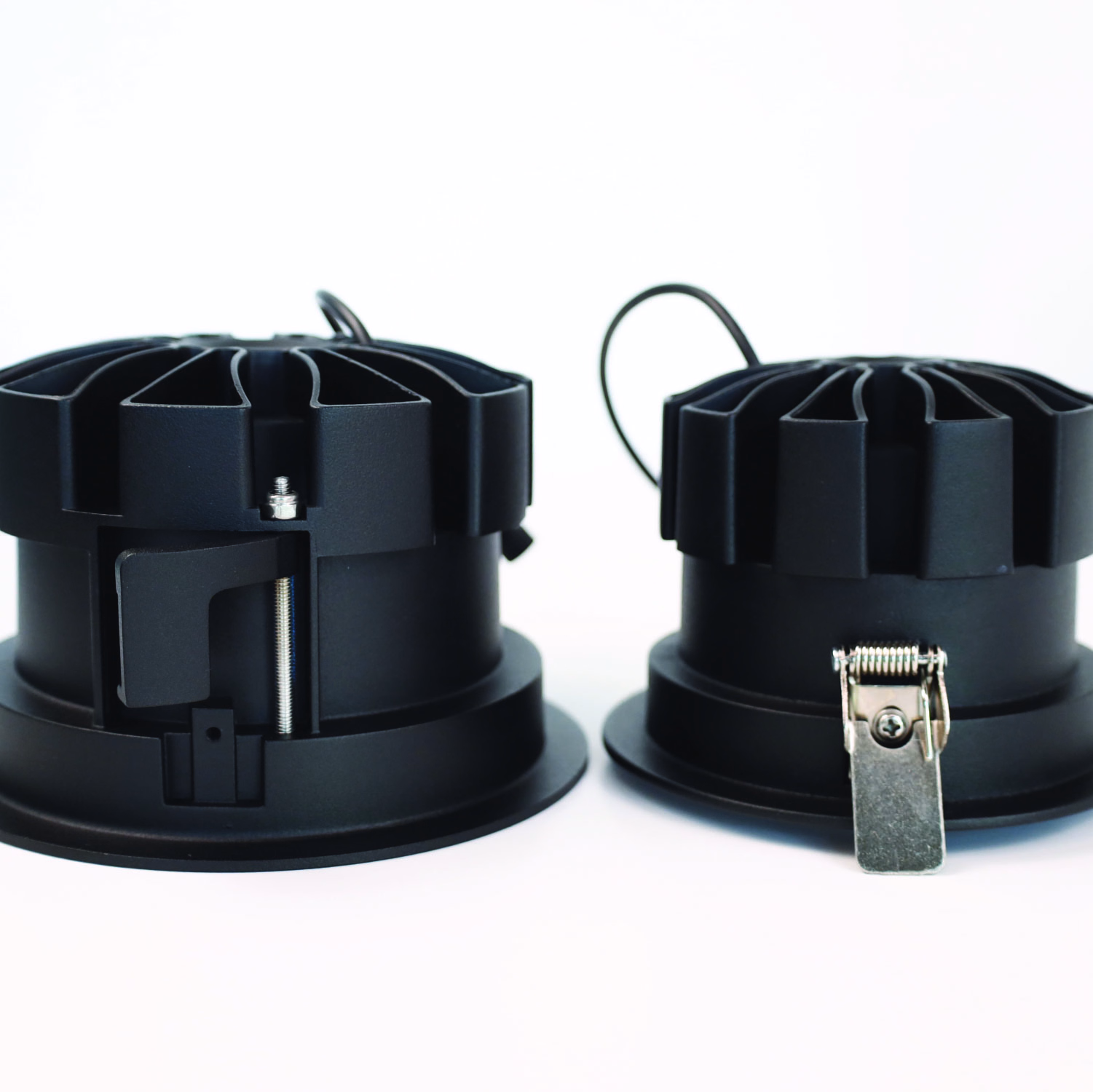

Easy Installation

Easy Installation

Rotor clip technology simplifies installation while helping reduce time on site.

Scroll to Explore↓
Why Specify 01/03
