OUTDOOR FIXTURE

ZORRO ELITE

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 130 LPW at 80CRI

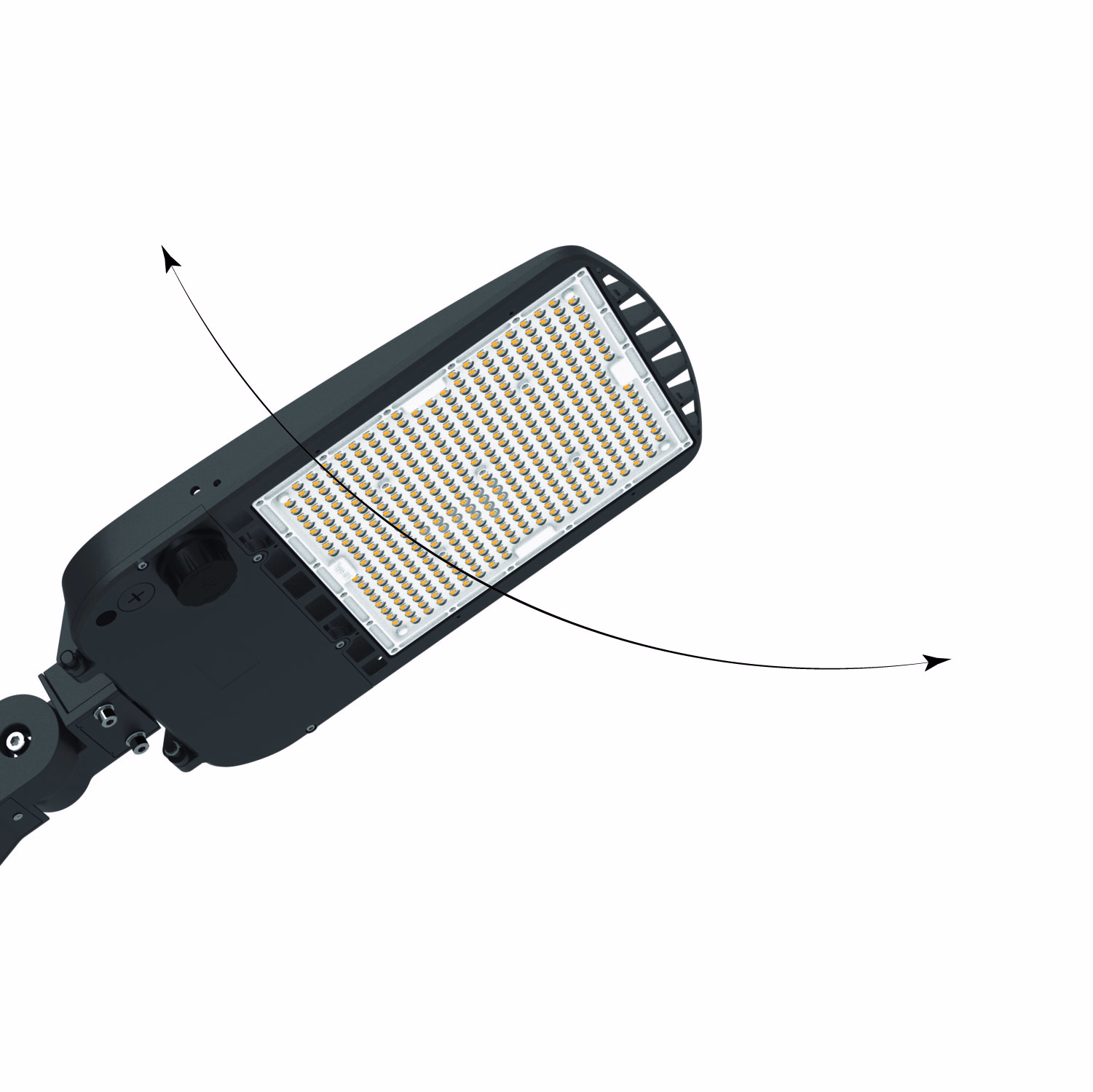

Distribution : Type 3, Type 4, Type 5

Features & Benefits

PREMIUM MATERIALS AND DESIGN
Aluminum die cast housing for superior thermal heat dissipation, strength, and rigidity. Due to the fins structure and airflow holes, this will allow better heat dissipation and prevent lens deforming and water breaking in.


ACCESSORIES
Choose from a range of accessories from microwave motion sensor to photocell cap enhancing your fixture's abilities.

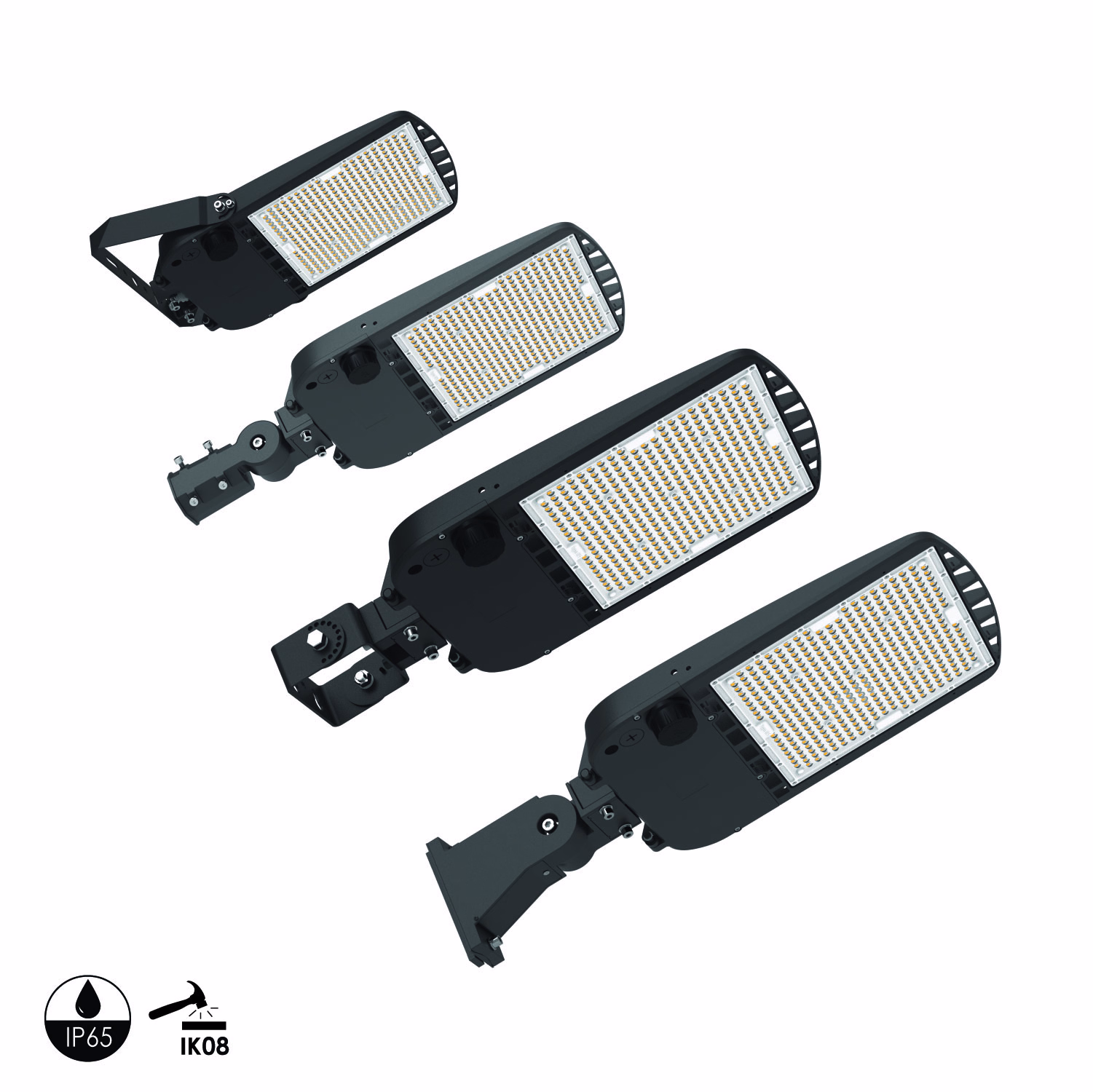

MULTIPLE MOUNTING METHODS
Select from slip fitter, direct, yoke and even U bracket flood mount to have the area light mounted however needed.


PROTECTION
Integrated surge protector, LED fixture and driver IP65 rated and IK08 protection allows the Zorro Elite to be protected against harsh environmental conditions.

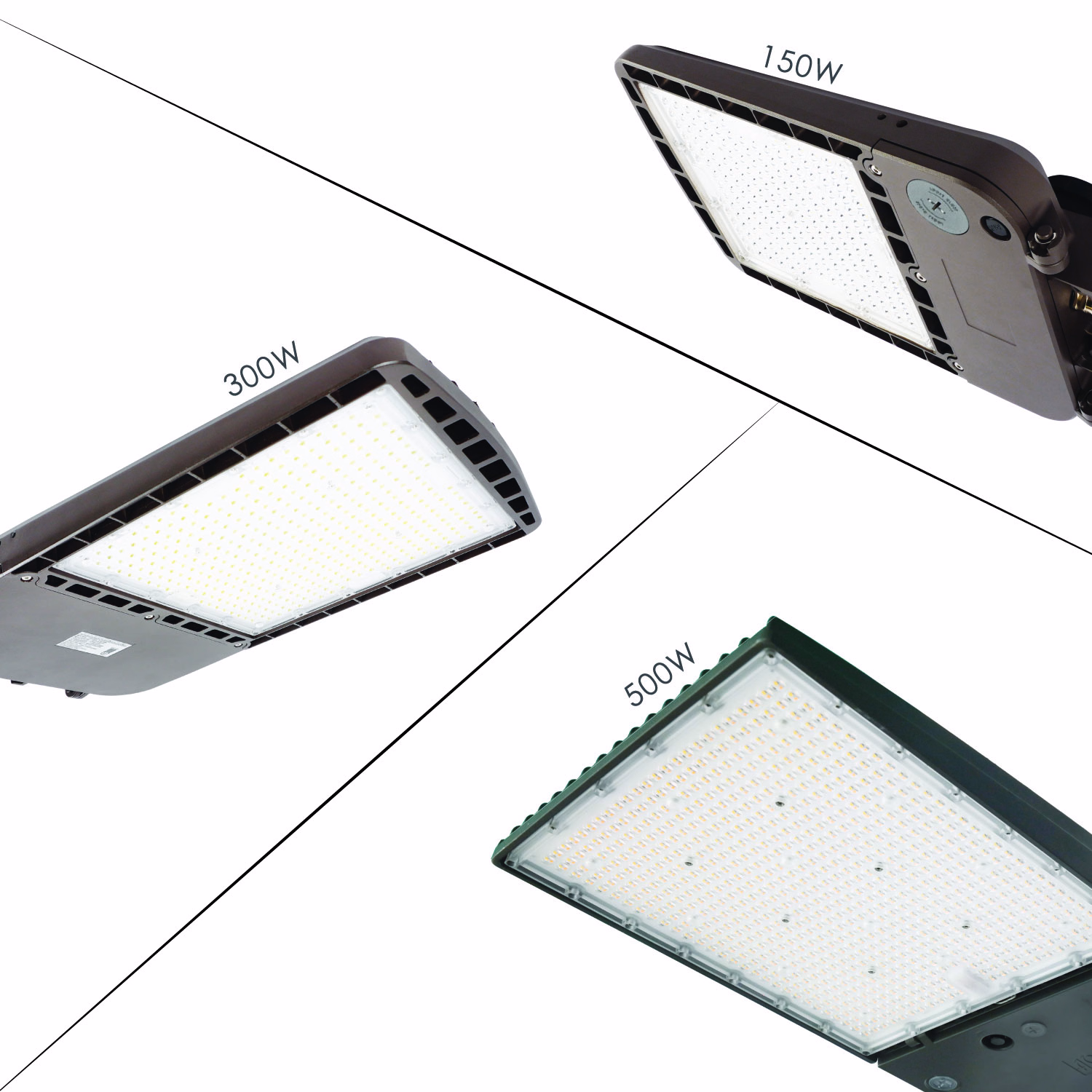

SELECTIVITY
With selectable on field power and color temperature, this fixture enables you to customize your unique fixture to your project space.


Description

The ZORRO ELITE series is the next generation of area lights. This fixtures has selectable power and CCT. It also features different mounting methods and a variety of light distribution patters, which will allow you to tailor your outdoor lighting requirements. Our fixture comes standard with a 3 pin NEMA base as well as a 20KV SPD.

Downloads

Install Instruction ZORRO ELITE

Download

Spec Sheet ZORRO ELITE

Download

IES Files - ZORRO ELITE

Download

Product Configurator

Your Product Code :

AE-OD-ZRE
POWER
VOLTAGE
CONTROLS
DISTRIBUTION
MOUNTING

Dimensions

150W

300W

Output

9100/13000/19500lm

26000/31200/39000lm

Color and color temperature

80 CRI

3000K

4000K

5000K

CCT Switchable

Power Switchable

Color Finish

Bronze Finish

Optics

Type T3

Type T4

Type T5

Control

On/Off

0-10V Dimming

Motion Sensor

Photocell

Accessories

DI Bracket

Slip Fitter

Yoke

U Bracket for Floodlight Option

Certifications

5 Year Warranty

UL Certified

RoHs Certified

IP65

IK08

Surge Protector

DLC Premium
