DIA
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 48V DC
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V dimming with external driver
Lumens per Watt : 75 LPW
Distribution : 28˚, 48˚
Features & Benefits
SNAP-IN MOUNTING ADAPTER
Compatible with the Jupiter snap-in track.
VALUE ENGINEERED DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.
PAINT FINISH
Available in black or white finish.
MULTIPLE OPTIONS
Customize your track head by selecting from a variety of beam angles and CCT options allowing you to have a unique fixture that suits your project.
EFFICIENT DESIGN
Integrated components allow for clean aesthetic appearance.
Description

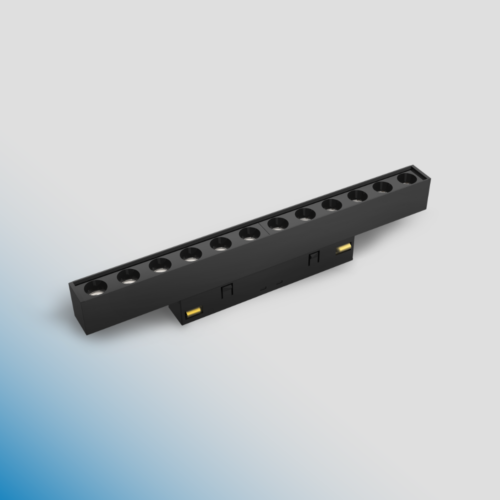

The DIA is a linear track head compatible with the Jupiter snap-in track. It offers multiple options for beam angle, CCT, and finish. The fixture has a simple, straight forward snap-in installation that can be done quickly and effortlessly on field. It will brighten your space by offering up to 926 lumens.
Downloads
Product Configurator
Your Product Code :

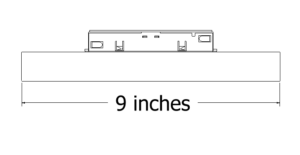

Dimensions
9 inches
Output
926lm
Color and color temperature
90 CRI
3000K
4000K
Color Finish
White Powder Coat Finish
Black Powder Coat Finish
Optics
Flood
Wide Flood
Control
ON/OFF
0-10V
Certifications
3 Year Warranty
ETL Listed
