OUTDOOR FIXTURE

IDA

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V
Lumens per watt : 140 LPW at 80CRI
Distribution : 7H*7V

Features & Benefits

PREMIUM MATERIALS AND DESIGN
Aluminum die cast housing for superior thermal heat dissipation, strength, and rigidity. Integrated fin heat dissipation structure built into the fixture's housing provides long lasting LED and driver function.


PROTECTION
Integrated surge protection, LED fixture and driver IP65 rated all allows for protection against harsh environmental conditions.


MOUNTING METHOD
Select from knuckle mount or Trunnion bracket mounting methods.


SELECTIVITY
With selectable on field power and color temperature, this fixture enables you to customize your unique fixture to your project space.


Description

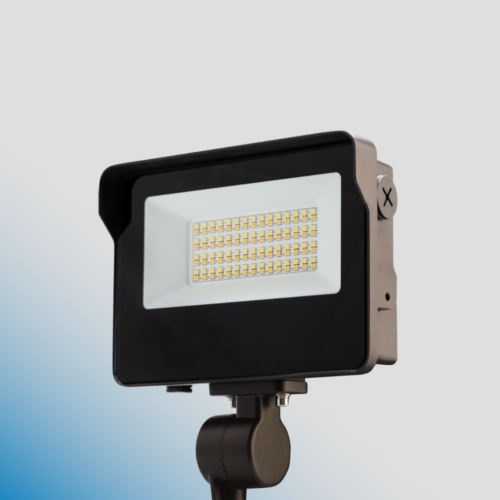

Introducing the Ida Series, with its sleek and distinguished high-quality look for our outdoor flood fixture. Made with robust die casting aluminum and tempered glass optical lenses, being IP65 rated, the Ida series can withstand the harshest of outdoor elements. It also allows flexibility on field with its CCT and power selectable options, perfect for lighting spaces such as gardens, balconies, public areas and other outdoor areas.

Downloads

Install Instruction IDA

Download

Spec Sheet IDA

Download

IES Files - IDA

Download

Product Configurator

Your Product Code :

AE-OD-ID
POWER
INPUT VOLTAGE
CRI
CCT
DIMMING
MOUNTING
FINISH

Output

2100/3500/4900lm

6300/8400/11200lm

Color and color temperature

80 CRI

3000K

4000K

5000K

CCT Switchable

Power Switchable

Color Finish

Bronze Finish

Control

On/Off

0-10V Dimming

Photocell

Accessories

Knuckle Mount

Trunnion Mount

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

IP65

4KV Surge Protector
