TRINITY

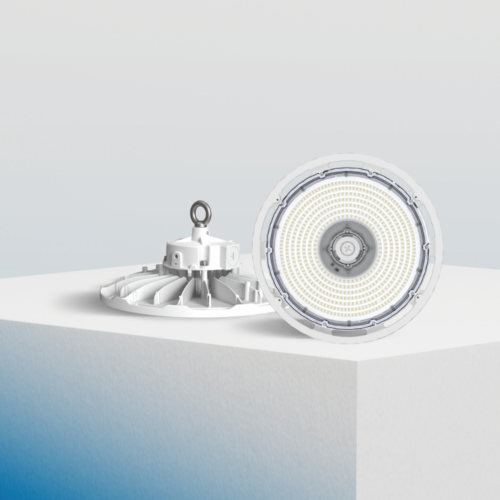

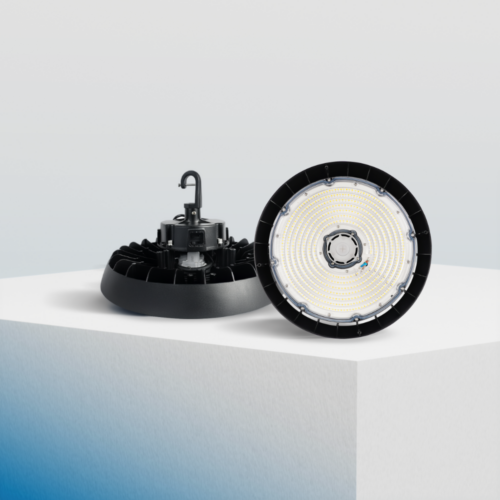

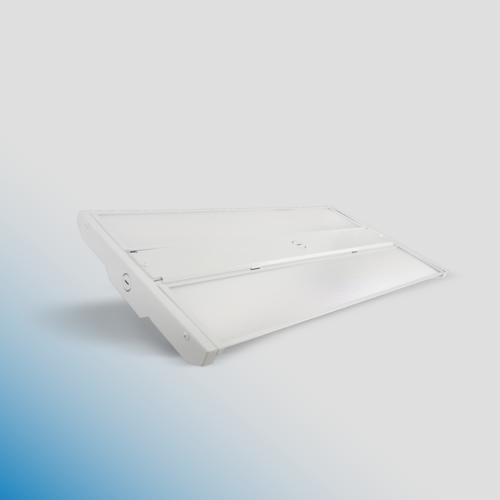

You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V dimming
Lumens per Watt : 140~150 LPW at 80CRI
Distribution : 90˚,120˚, 50x90˚ (Beam Angle)
Features & Benefits
Flexibility
Easy toolless entry access to driver and internal components allows for easy installation and maintenance.
Accessories
Accessories available for purchase with fixture such as wire guards, motion sensors, replacement lenses.
Multiple Sizes
Available 2 and 4FT lengths.
Power Options
Input voltage ranging up to 480V with lumens packages from 75 to 400 watts and up to 60,000 lumens.
Description
The Trinity Series industrial fixture is a linear highbay series by ERALUX. It is offered in several sizes and has several mounting methods to suit your project space. One of the distinctive feature of this fixture is the use of aluminum extrusions in order to offer the maximum surface area for the heatsinking of the led arrays. This ensures longer lifetime of the fixture while enabling a higher performance.
Downloads
Product Configurator
Your Product Code :
Dimensions
![](/wp-content/uploads/2024/01/2ft.jpg)
2ft
![](/wp-content/uploads/2024/01/4ft.jpg)
4ft
Output
11250lm
15000lm
22500lm
30000lm
36000lm
45000lm
60000lm
Color and color temperature
![](/wp-content/uploads/2024/01/80-CRI.png)
80 CRI
![](/wp-content/uploads/2023/12/4000K.jpg-300x300.jpg)
4000K
![](/wp-content/uploads/2023/11/5000K-1-300x300.png)
5000K
Color Finish
![](/wp-content/uploads/2024/01/Nebula-White-Finish.png)
Nebula White Finish
Optics
![](/wp-content/uploads/2023/12/90-Degrees.png)
90 Degrees
![](/wp-content/uploads/2023/12/120-Degrees.png)
120 Degrees
![](/wp-content/uploads/2024/01/50x90-Degrees.png)
50x90 Degrees
Control
![](/wp-content/uploads/2024/01/On-Off.png)
On/Off
![](/wp-content/uploads/2024/01/0-10V.png)
0-10V Dimming
![](/wp-content/uploads/2024/01/Motion-Sensor-1.png)
Motion Sensor
![](/wp-content/uploads/2024/01/EMBB-1.png)
Emergency Backup Battery
Accessories
![](/wp-content/uploads/2024/01/Trinity-Wireguard.png)
Wire Guard
Certifications
![](/wp-content/uploads/2024/01/5-Year-Warranty.jpg)
5 Year Warranty
![](/wp-content/uploads/2024/01/UL-Certified.png)
UL Certified
![](/wp-content/uploads/2024/01/RoHS-Certified.png)
RoHS Certified
![](/wp-content/uploads/2024/01/IP40-300x300.png)
IP40
