KORE
You may also like…
Additional Information
OPERATIONS & ELECTRICAL
Input voltage : 48V DC
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V dimming with external driver
Lumens per Watt : 73 LPW
Distribution : 15˚, 24˚, 38˚, 50˚
Features & Benefits

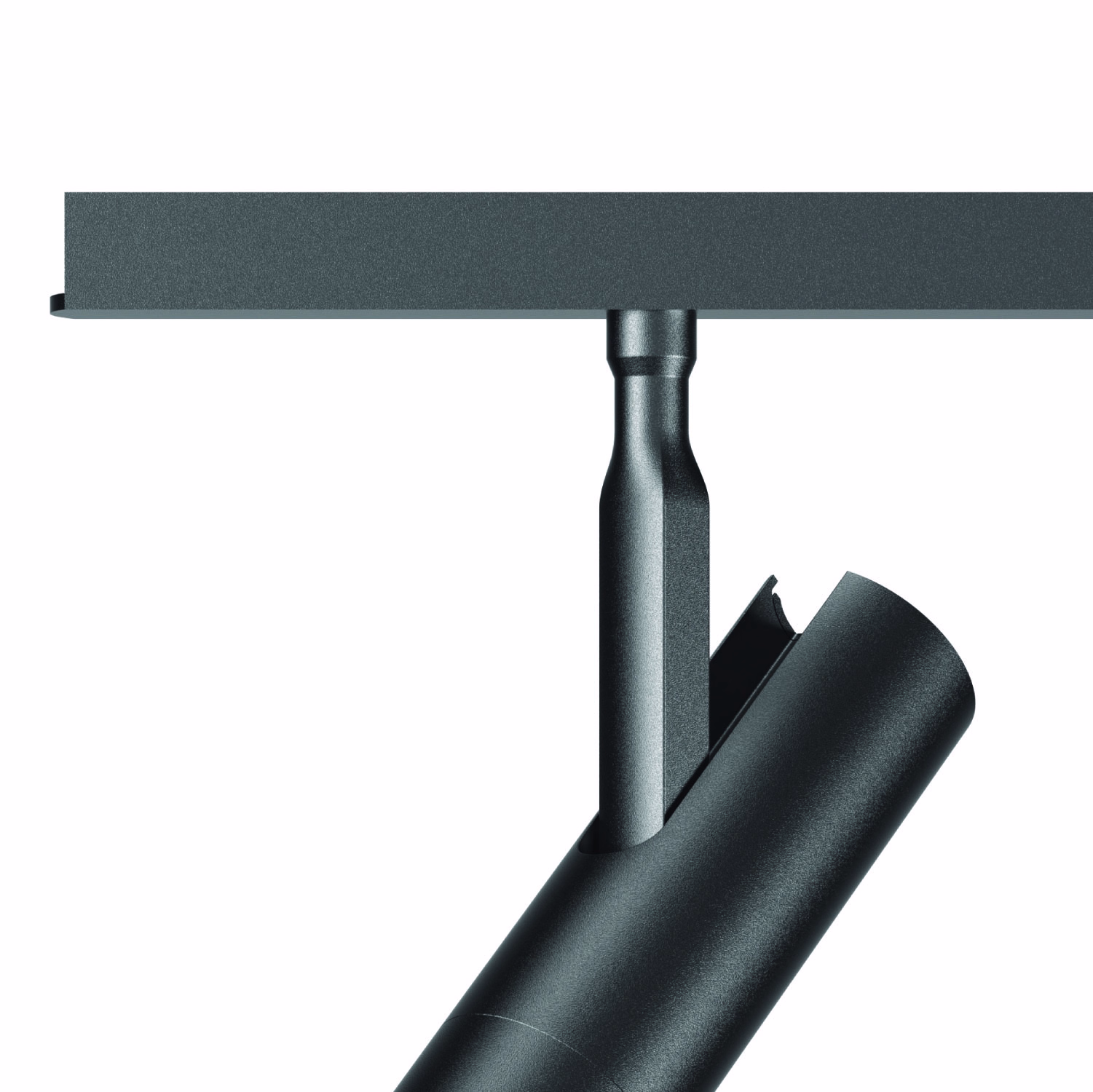

SNAP-IN MOUNTING ADAPTER
Compatible with the Jupiter snap-in track.
VALUE ENGINEERED DESIGN
Aluminum die-cast materials selected for efficient thermal heat dissipation, enhanced structural rigidity maximizing LED life and driver function.
PAINT FINISH
Available in black or white finish.

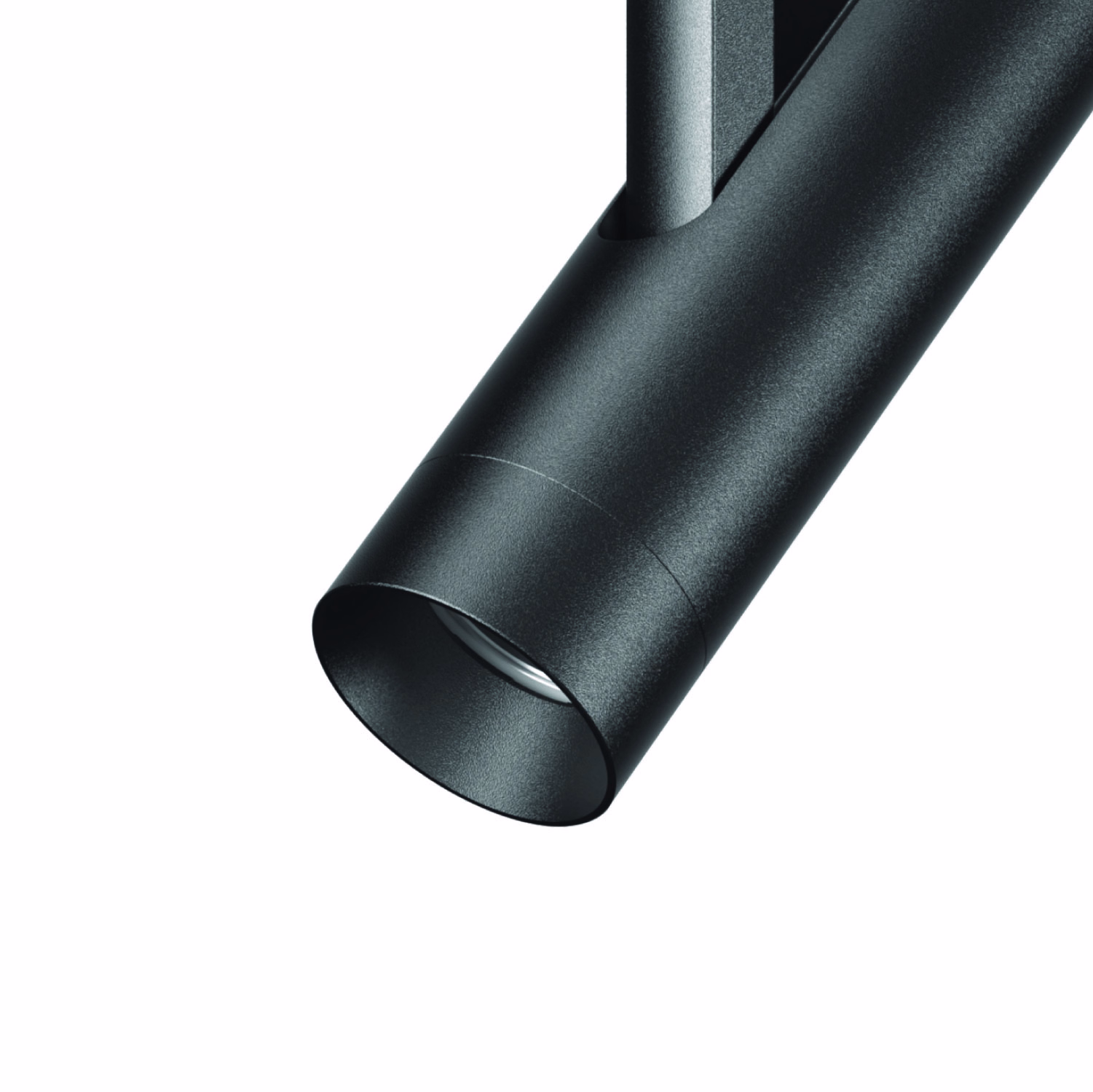

MULTIPLE OPTIONS
Customize your track head by selecting from a variety of beam angles and CCT options allowing you to have a unique fixture that suits your project.
EFFICIENT DESIGN
Integrated components allow for small stem and clean aesthetic appearance.
Description

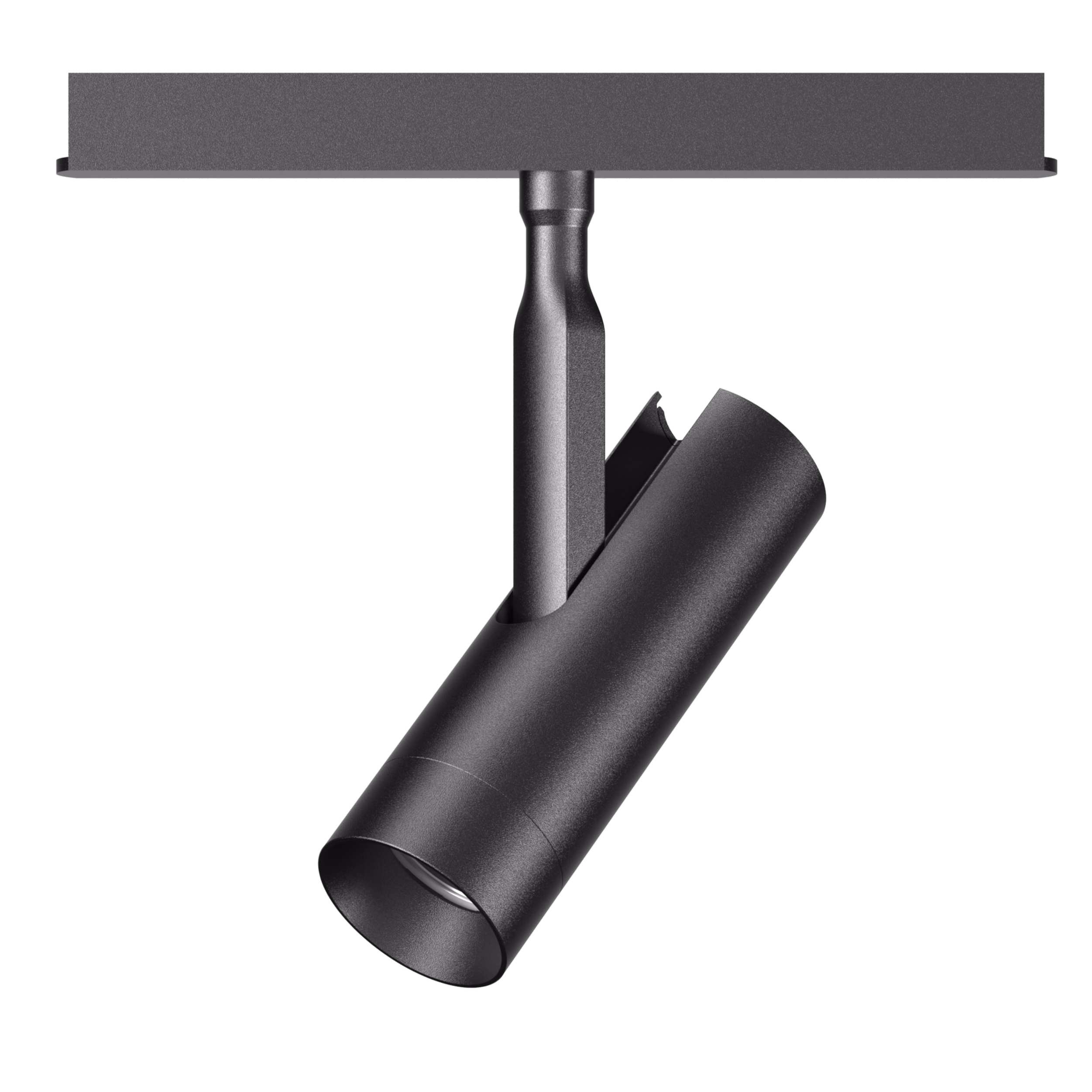

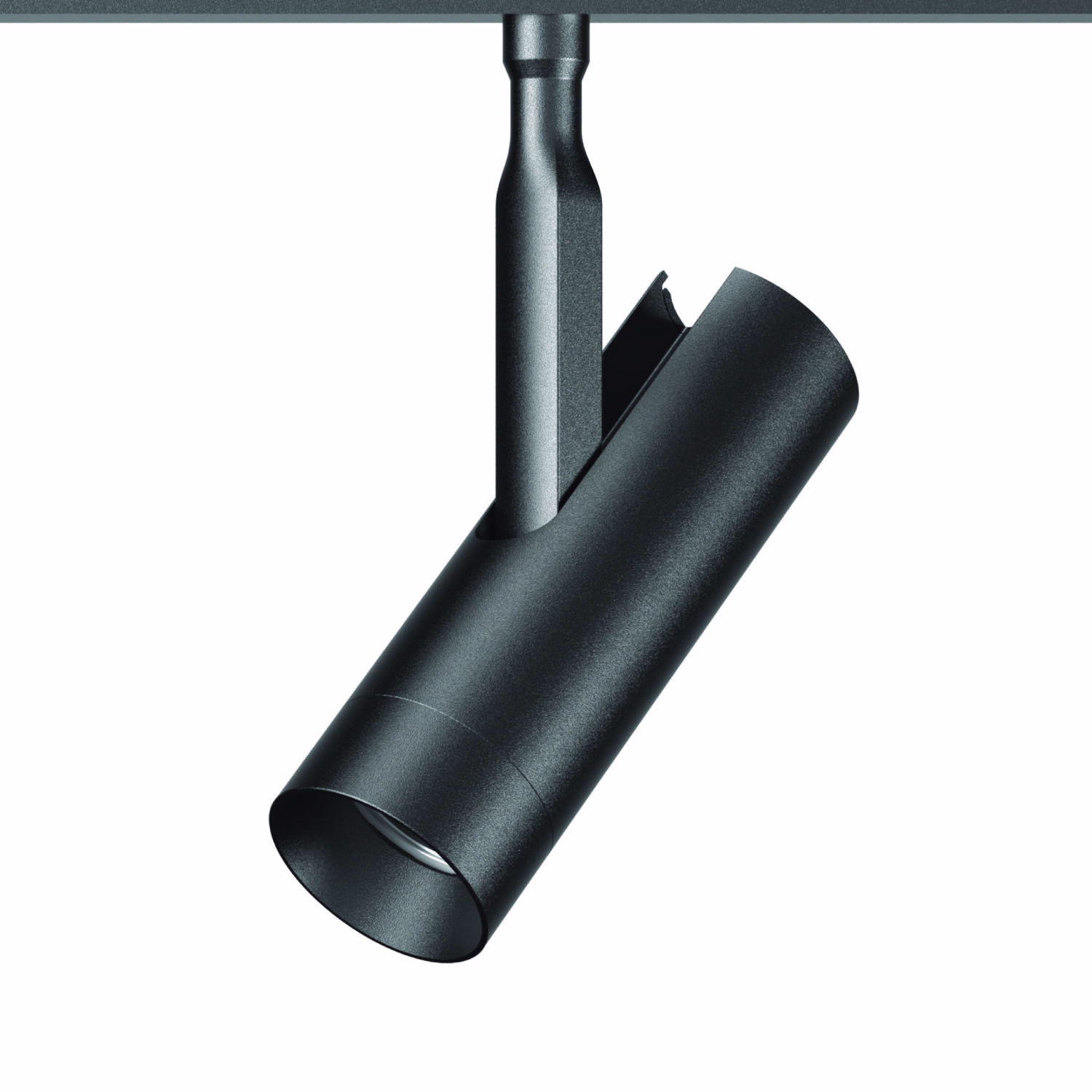

KORE is a cylinder track head compatible with the Jupiter snap-in track. It offers a range of beam angles, CCTs, and fixture finishes. Installation is straight forward and the fixture’s rotation and tilt can be adjusted quickly and effortlessly on field. With its sleek and simple design, KORE is a customizable and attractive addition to any track system.
Downloads
Product Configurator
Your Product Code :
Dimensions
1.5 inches
Output
580lm
Color and color temperature
2700K
3000K
3500K
4000K
90 CRI
Color Finish
White Powder Coat Finish
Black Powder Coat Finish
Optics
Narrow Flood
Flood
Wide Flood
Very Wide Flood
Control
ON/OFF
0-10V
Certifications
3 Year Warranty
ETL Listed
