Thalassa ET6123
OPERATIONS & ELECTRICAL
Input voltage :100-277Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : ~75 LPW at 80CRI
DESCRIPTION

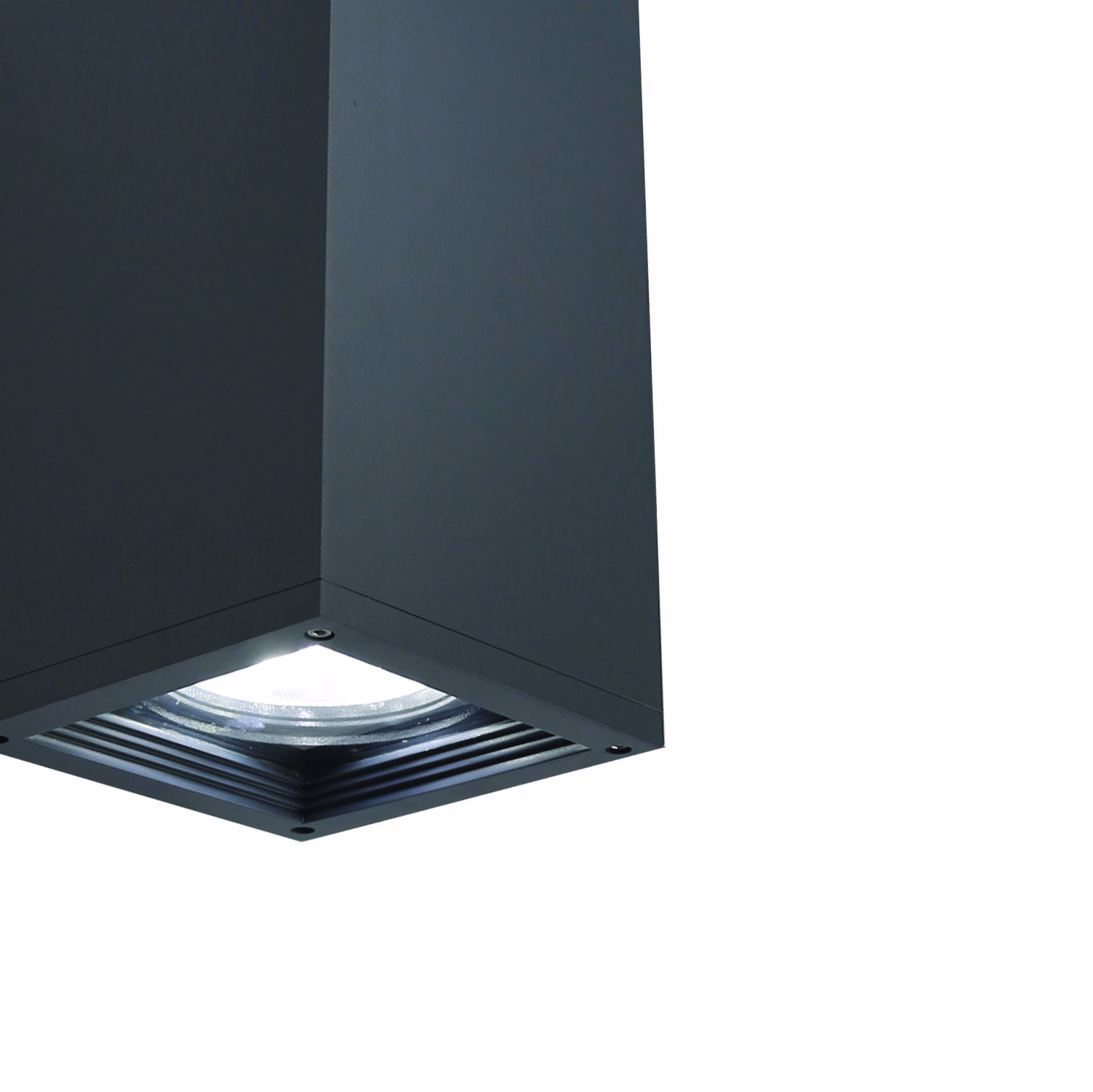

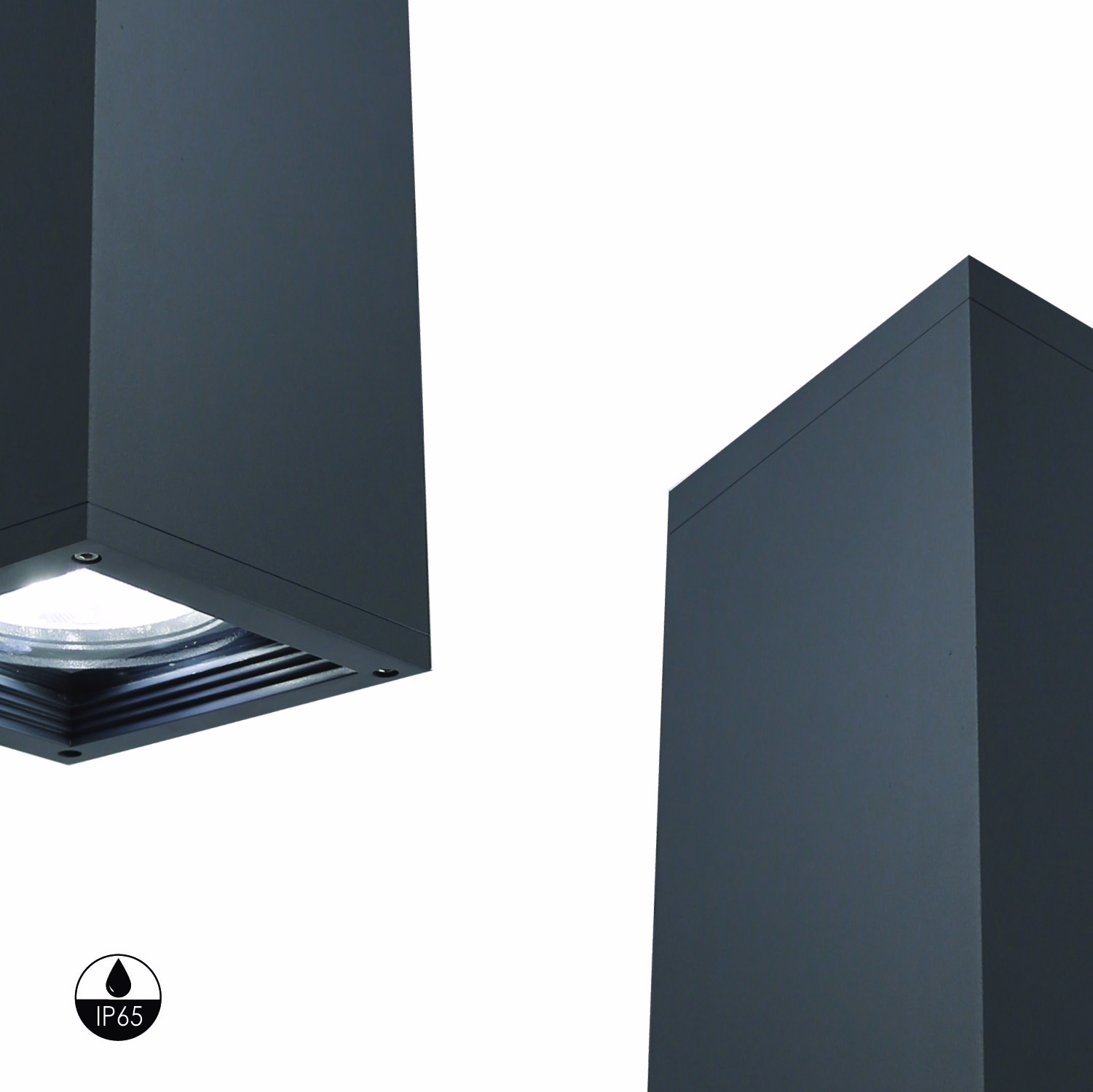

The Thalassa outdoor wall-mounted square LED fixture was created with a sleek design deliberately, so it could blend in with many different outdoor building styles. The Thalassa also has an impressive efficacy of 75 LPW providing performance as well as elegance in the install environment. Finally, this product is a complete aluminum die-cast offering an unparalleled sense of finesse, fixture strength and quality.
ORDERING CODE
| FIXTURE FAMILY | POWER | CCT | BEAM ANGLE | CRI | FINISH | CONTROLS |
|---|---|---|---|---|---|---|
|
ET6123 ERALUX Thalassa ET6123 outdoor wall mounted square sconce fixture |
-C30x2 2x30 watts: 4800 lumens |
-3 3000K CCT |

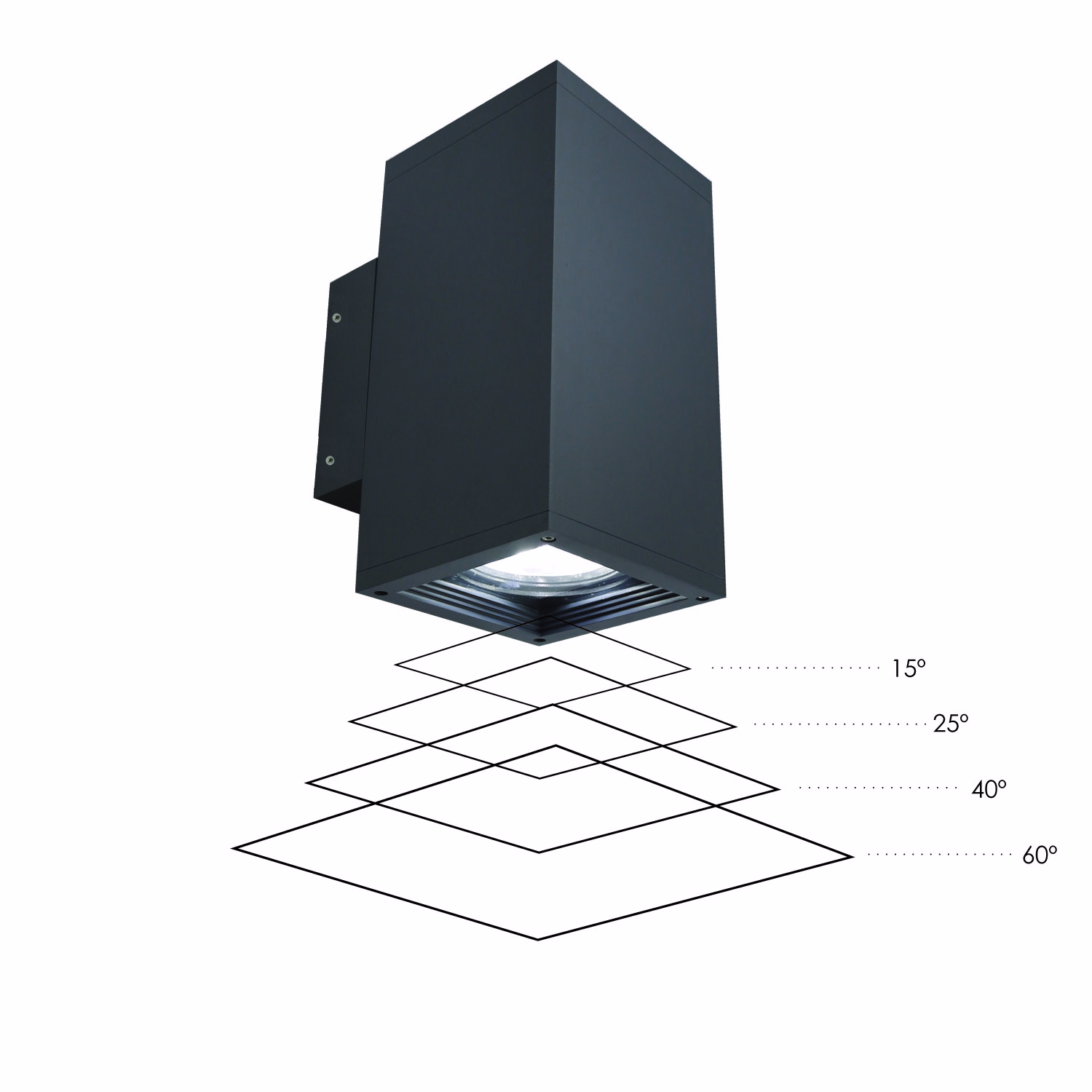

-15 15˚ beam angle |
-80 80 CRI |
-B Black powder coat finish |
-SDMG Up and down separate 0-10V external dimming down to 10% |
|
-4 4000K CCT |
-20 20˚ beam angle |
-W White powder coat finish |
||||
|
-5 5000K CCT |
-30 30˚ beam angle |
-S Silver (RAL9006) powder coat finish |
||||
|
-60 60˚ beam angle |
-G Gray (RAL7012) powder coat finish |
|||||
|
-1560 Up: 15˚ beam angle Down: 60˚ beam angle |
-Z Mineral bronze powder coat finish |
