OUTDOOR FIXTURE

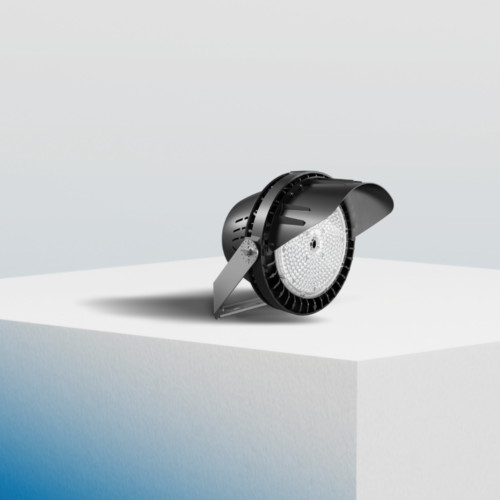

ZEUS

You may also like…

Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~277Vac, 277~480Vac
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 1-10V Dimming
Lumens per watt : 130 LPW at12˚/160 LPW at 30˚, 55˚
Distribution : 12˚, 30˚, 55˚(BEAM ANGLE)

Features & Benefits

COMPONENTS
Components are designed to provide high-output, high-efficacy illumination. LED fixture and driver are IP66 ensuring durability through tough environmental conditions. The ZEUS series also features super BUG control over the beams to enable placement of the light source to the right place.


RADIATOR VENTILATION
Seamless link of aero-metal materials, and numerous vents on the fixture's heat sink provide superior thermal heat management, and dissipate heat from the field.


SOLID STATE DESIGN
Unique and advanced design had no fixed components. All parts are rugged, strong, and removable, if needed, for servicing.


Description

The Zeus Series LED luminaire is designed to show off your stadium and athletic field lighting needs. It offers a superior efficacy of up to 130 LPW with multiple CCT and beam angle variations at both 120-277V, and 277-480V. Its bracket mount, optional visor, and laser positioning tool will allow you to be able to focus the light to maximize your space.

Downloads

Install Instruction ZEUS

Download

Spec Sheet ZEUS

Download

IES Files - ZEUS

Download

Product Configurator

Your Product Code :

AE-SP-ZS
POWER
CONTROLS
VOLTAGE
CCT
BEAM ANGLE

Output

62400lm

76800lm

78000lm

96000lm

Color and color temperature

70CRI

4000K

5000K

Color Finish

Black Finish

Optics

12 Degrees

30 Degrees

55 Degrees

Control

On/Off

1-10V Dimming

Accessories

Visor

Certifications

5 Year Warranty

ETL Certified

RoHs Certified

IP66 Rated

IK08
