Chandra Mini
OPERATIONS & ELECTRICAL
Input voltage : 120 V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : Triac dimming
Lumens per Watt : 79-91 LPW at 90CRI
Distribution : Narrow flood, Flood, Wide Flood
DESCRIPTION
Along with the CHANDRA Max and CHANDRA Series, you can create a family look in your retail environment with this new CHANDRA Mini series. The CHANDRA Mini distinguishes itself through its integrated driver with forward and reverse phase dimming. It comes available in a variety of beam pattern and CCT option. With a 90CRI for all its CCT, the CHANDRA Mini will enhance your retail environment to another level.
ORDERING CODE
| FIXTURE FAMILY | WATTAGE | DISTRIBUTION | CRI | CCT | ADAPTER | FINISH |
|---|---|---|---|---|---|---|
|

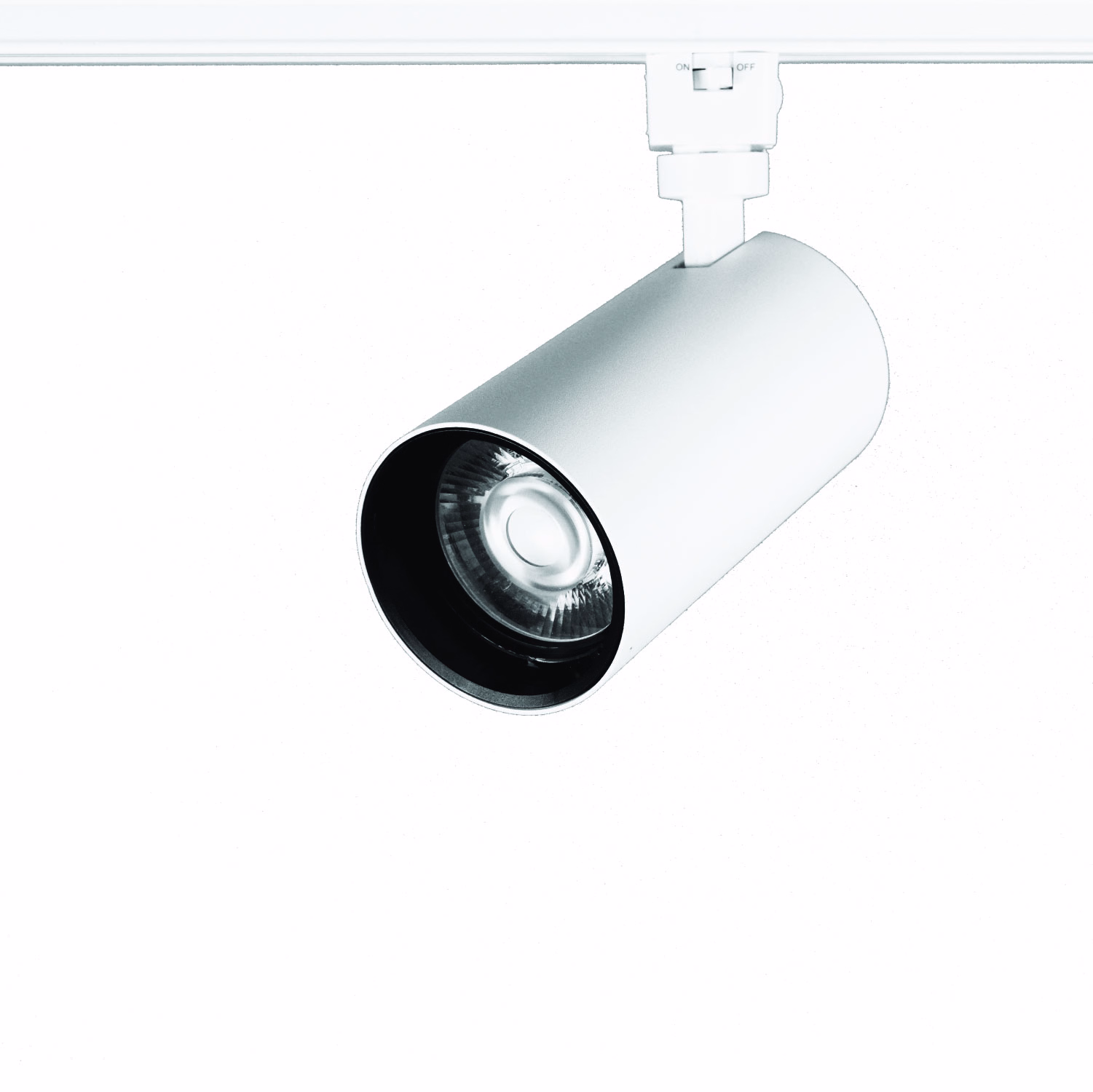

AE-TL-CDM-12 ERALUX CHANDRA MINI track light 120 V |
L 9 watts: 765 lumens at 90CRI 3000K |
NF 25° Narrow Flood light distribution |
P Premium 90 CRI |
27 2700K CCT |
J1 Juno mounting system |
BK Black powder coat finish |
|
FL 30° Flood light distribution |
30 3000K CCT |
G1 Global mounting system |
WH White powder coat finish |
|||
|
H 13.4 watts: 1059 lumens at 90CRI 3000K |
WF 60° Wide Flood light distribution |
35 3500K CCT |
H1 Halo mounting system |
|||
|
40 4000K CCT |
L1 Lightolier mounting system |
SV Silver powder coat finish |
DIMMER
| Manufacturer | Type of Dimmer | Manufacturer Part Number |
|---|---|---|
| Lutron | Leading edge dimmers | SLV-600X |
| S2-LX | ||
| GL-600H | ||
| NFTU-5A | ||
| DVLV-600P | ||
| Trailing edge dimmers | NTELV-600-XX | |
| SELV-303P | ||
| MAELV-600-XX | ||
| DVELV-300P-XX | ||
| SEIV-300P-XX | ||
| Leviton | Leading edge dimmers | 6602-X |
| 6681-X | ||
| 6683-X | ||
| 6684-X | ||
| 700-X | ||
| 705-X | ||
| 6633 | ||
| 6674 | ||
| IPI06-1LZ | ||
| Trailing edge dimmers | ||
| IPE04-1LZ | ||
| VZE06-1LX | ||
| 6615-P0T | ||
| Cooper | Leading edge dimmers | 9530XXX |
| Lightolier | MP600X | |
| Philips | SR150LED120 | |
| Trailing edge dimmers | SR400RPC120 |
