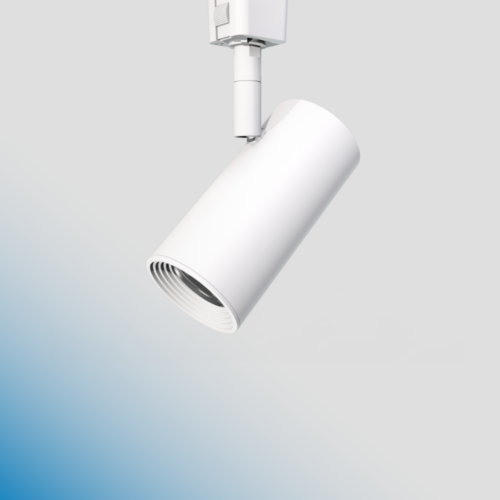

Kepler Plus
OPERATIONS & ELECTRICAL
Input voltage : 120 Vac
Power factor : >0.9
Total harmonic distortion (THD) : <20%
Dimming : Triac dimming
Lumens per Watt : 72-83 LPW at 90CRI
Distribution : Narrow Flood 25°, Flood 35°,
Wide Flood: 55°
DESCRIPTION

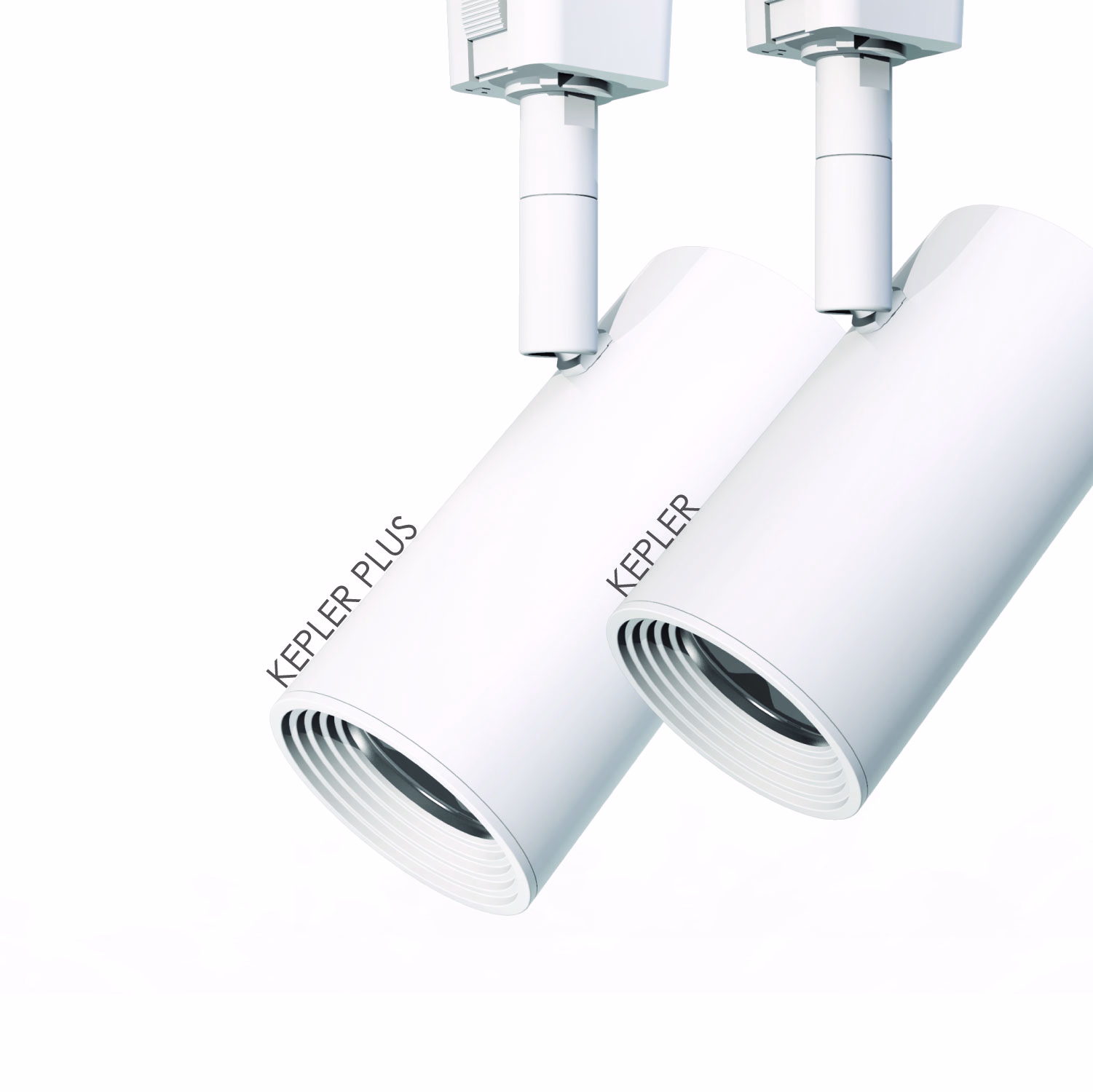

The KEPLER fixture series was specifically designed as a sleek alternative to the traditional track light. In comparison to the Kepler, Kepler Plus has a higher LPW, and slightly longer in shape. It distinguishes itself with its slim and compact look and variety of optical options. This product also comes standard at 90 CRI. Available in black, white and silver finishes, the Kepler Plus is an elegant addition to your next project.
ORDERING CODE
| FIXTURE FAMILY | DISTRIBUTION | CRI | CCT | ADAPTER | FINISH |
|---|---|---|---|---|---|
|
AE-TL-KPP-12 ERALUX KEPLER PLUS Series track light 120Vac |
NF Narrow Flood light distribution 25° 13.5W: 1,053 lumens at 90CRI 3000K CBCP: 5080 @ 90 CRI |
P Premium 90 CRI |
30 3000K CCT |
J1 Juno mounting system |
BK Black powder coat finish |
|
FL Flood light distribution 35° 13.5W: 1,053 lumens at 90CRI 3000K CBCP: 2620@ 90 CRI |
40 4000K CCT |
L1 Lightolier mounting system |
WH White powder coat finish |
||
|
WF Wide Flood light distribution 55° 13.5 watts: 1,053 lumens at 90CRI 3000K |
H1 Halo mounting system |
SV Silver powder coat finish CBCP: 1350 @ 90 CRI |
|||
|
G1 Global mounting system |
DIMMER
| Manufacturer | Type of Dimmer | Manufacturer Part Number |
|---|---|---|
| Lutron | Leading edge dimmers | SLV-600X |
| S2-LX | ||
| GL-600H | ||
| NFTU-5A | ||
| DVLV-600P | ||
| Trailing edge dimmers | NTELV-600-XX | |
| SELV-303P | ||
| MAELV-600-XX | ||
| DVELV-300P-XX | ||
| SEIV-300P-XX | ||
| Leviton | Leading edge dimmers | 6602-X |
| 6681-X | ||
| 6683-X | ||
| 6684-X | ||
| 700-X | ||
| 705-X | ||
| 6633 | ||
| 6674 | ||
| IPI06-1LZ | ||
| Trailing edge dimmers | ||
| IPE04-1LZ | ||
| VZE06-1LX | ||
| 6615-P0T | ||
| Cooper | Leading edge dimmers | 9530XXX |
| Lightolier | MP600X | |
| Philips | SR150LED120 | |
| Trailing edge dimmers | SR400RPC120 |
